DATASHEET - STX120 PRO IP20 Custom cuts

www.lumeno.ie

LM-STX120PRO-R

STX120PRO Series, 9.6W/M, CC LED Strip,IP20,24V,RED,p/m

No vote

G

225LM/M

Indoor use only
Allows long runs of up-to 20m with one end supply
Cuttable every 50mm,
High light output
Low working temperature

High output led strip series, designed for long runs with up-to 20m run. 120 Led's per meter, constant current. Low working temperatures.

Technical Specification
Model	LM-STX120PRO-R
Light Source	2835SMD
Luminous Flux (LM)	225LM/M
Luminaire efficacy	25
Nominal Power	9.6 Watt
Correlated Colour Temperature (CCT)	Red
Colour Rendering Index (CRi)	n/a
Input Voltage (Pri)	24V DC
Min Cut (Circuit)	50mm (3 LED)
Light Angle (°)	120°
Lifespan	50Kh @LM80
Ingress Protection	IP20
Dimming	Dimmable with PWM
Driver	24V CV
Size	12x2mm
Warranty Period	10 Year
Maximum Length (mm)	20000
Connection Wire	2 Core - 20AWG
Working Temperature	40°C
Certification	CE,Rohs

Downloads

ONLYBY

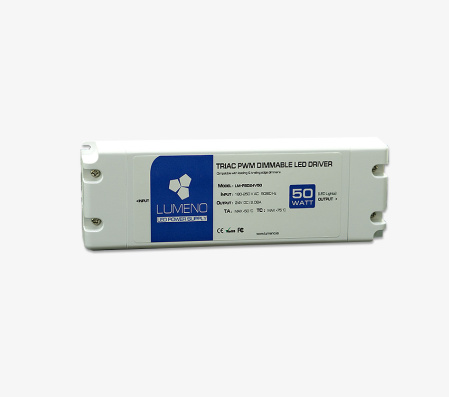

psd24v50-1

512502561

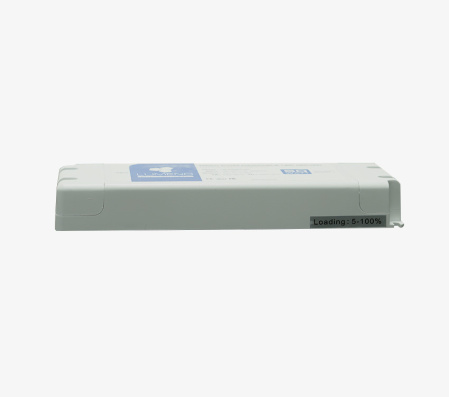

24V 50W, 2.08A, Triac Dimmable Power Supply

24V 50W, 2.08A, Triac Dimmable Power Supply

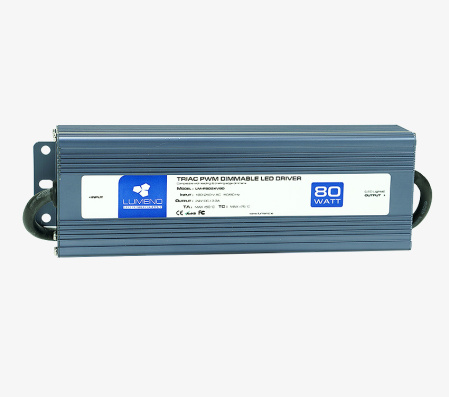

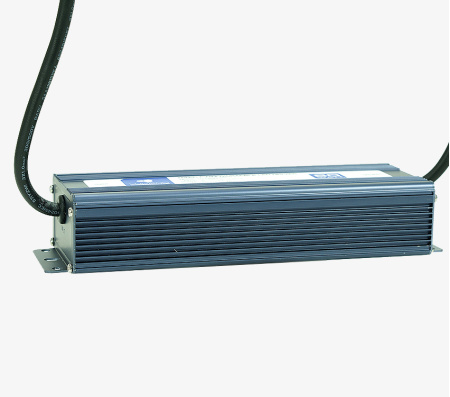

psd24v80-1

512508061

24V 80W, 3.33A, Triac Dimmable Power Supply

24V 80W, 3.33A, Triac Dimmable Power Supply

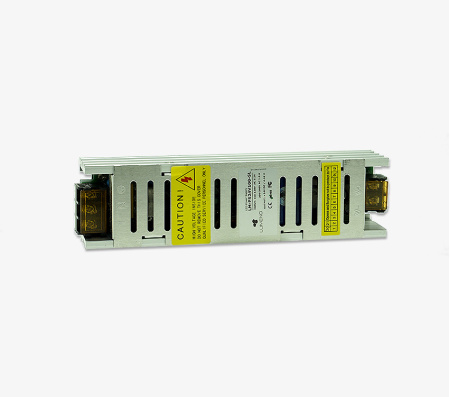

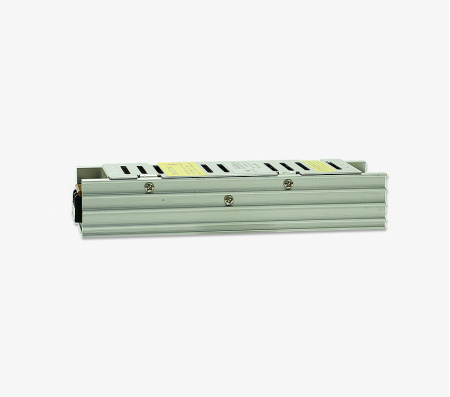

ps24v100sl-1

512110001

24V 100W, 4.16A, Power supply, IP20, metal, terminals

24V 100W, 4.16A, Power supply, IP20, metal, terminals

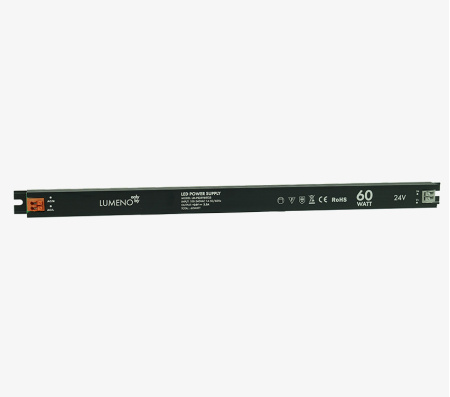

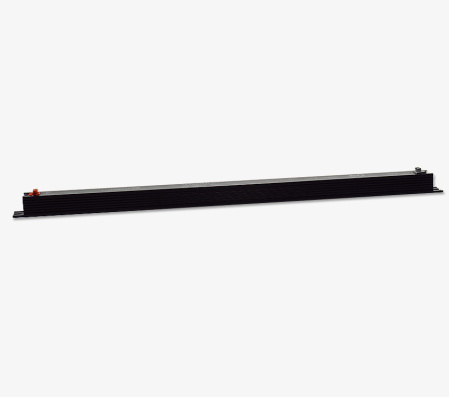

ps24v60cls-1

512106003

24V 60W, 2.5A, Power Supply, Slim, n/d, metal, terminals

24V 60W, 2.5A, Power Supply, Slim, n/d, metal, terminals

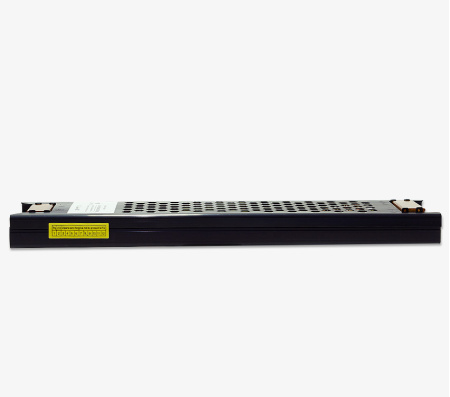

ps24v250sl-1

512125001

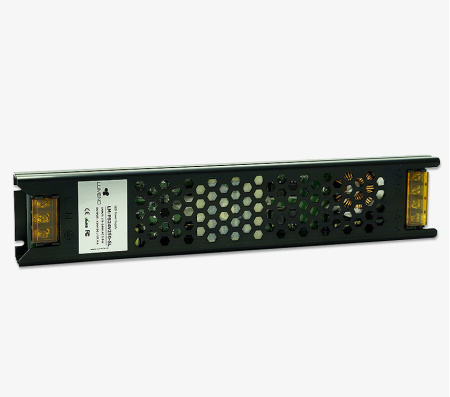

24V 250W,10.42A, Power Supply, IP20, metal

24V 250W,10.42A, Power Supply, IP20, metal
