DATASHEET - Triac dimmable power supply

www.lumeno.ie
psd24v50-1
psd24v50-1psd24v50-2
LM-PSD24V50

24V 50W, 2.08A, Triac Dimmable Power Supply

No vote
  • Single channel constant voltage output
  • Dimmable power supply for LED Strip
  • Plastic body
  • Triac/phasecut dimming

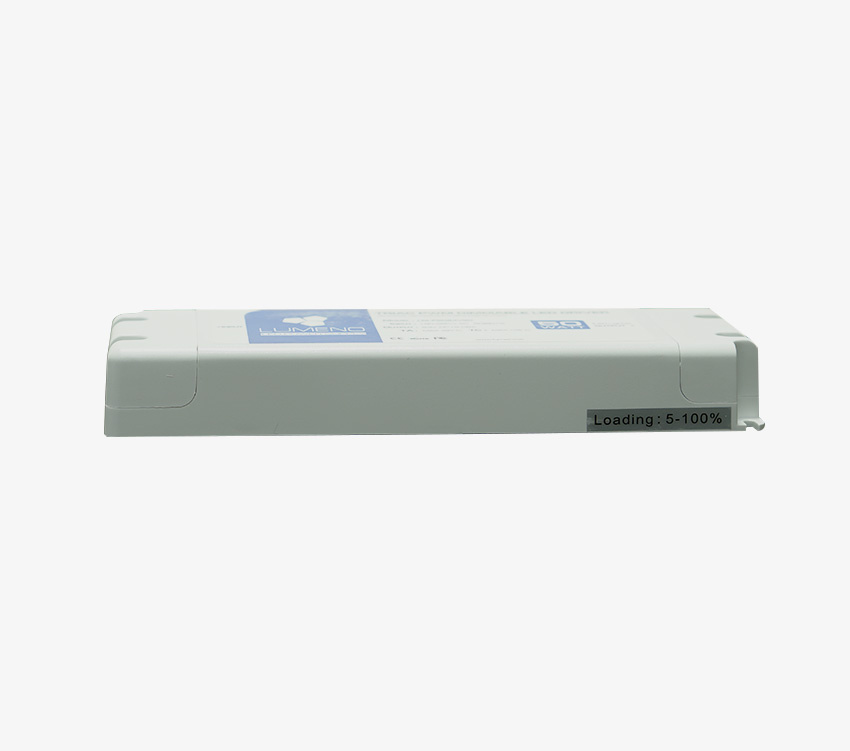

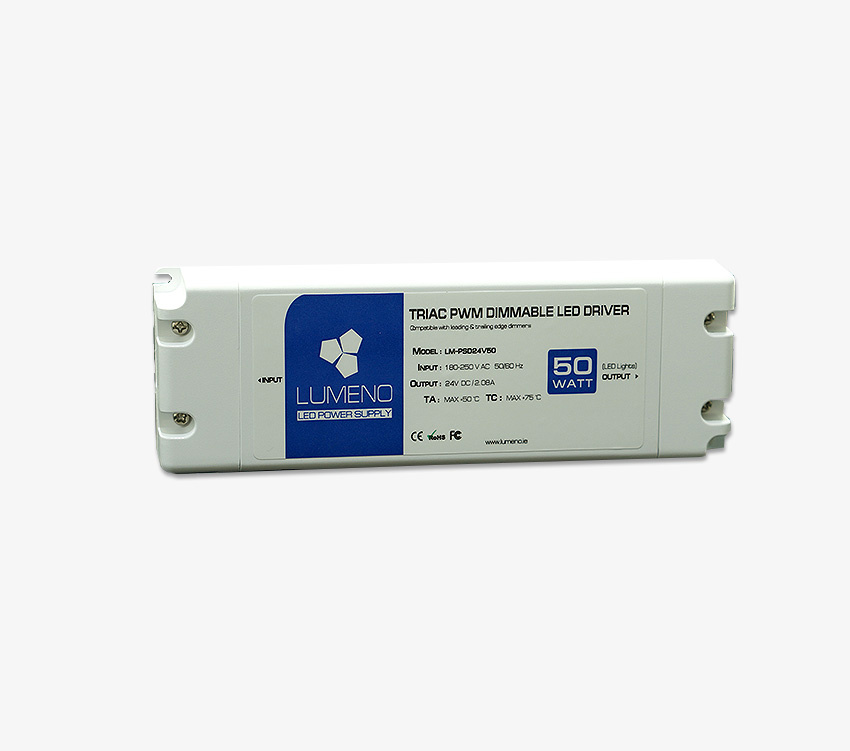

Dimmable power supply with constant voltage output. Plastic case, 5mm terminal blocks. Dimmable with standard triac dimmers.

Technical Specification

ModelLM-PSD24V50
Standby Power <0.5W
Input Voltage (Pri) 110V - 240V AC
Output (Vo) 24V DC
Output Power (P) 50 Watt
Current Output (Io) 2.08A
Power Factor 0.95
Ingress Protection IP20
Dimming Triac dimmable
Warranty Period 1 Year
Working Temperature -20°C ~ 40°C
Certification CE ROHS Certified
