24V 75W Dimmable Power Supply, RF, Push-Dim, V Series
DATASHEET
www.lumeno.ie
LM-PSD24V75V1

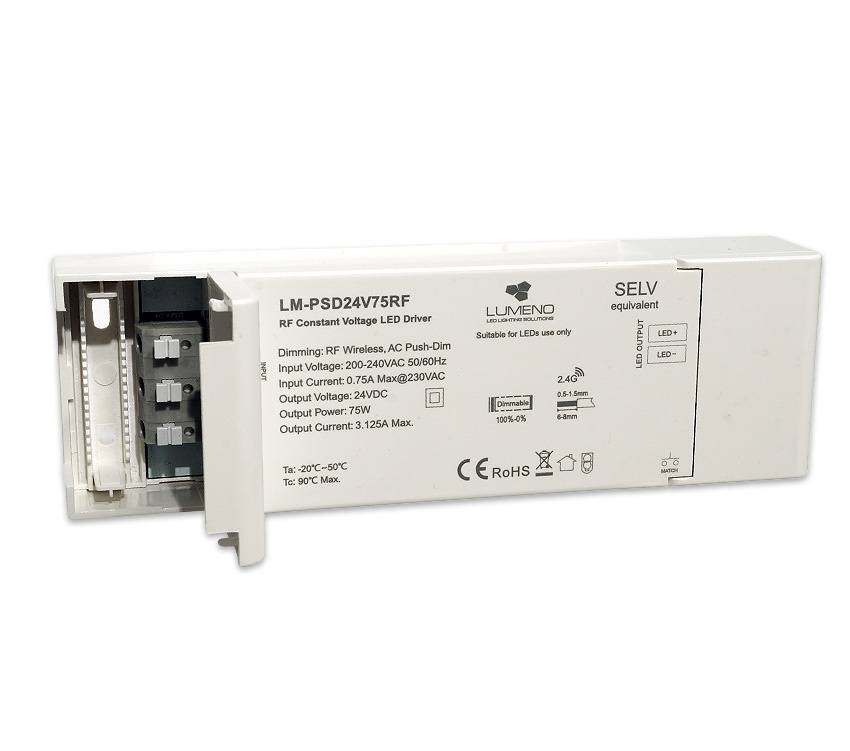

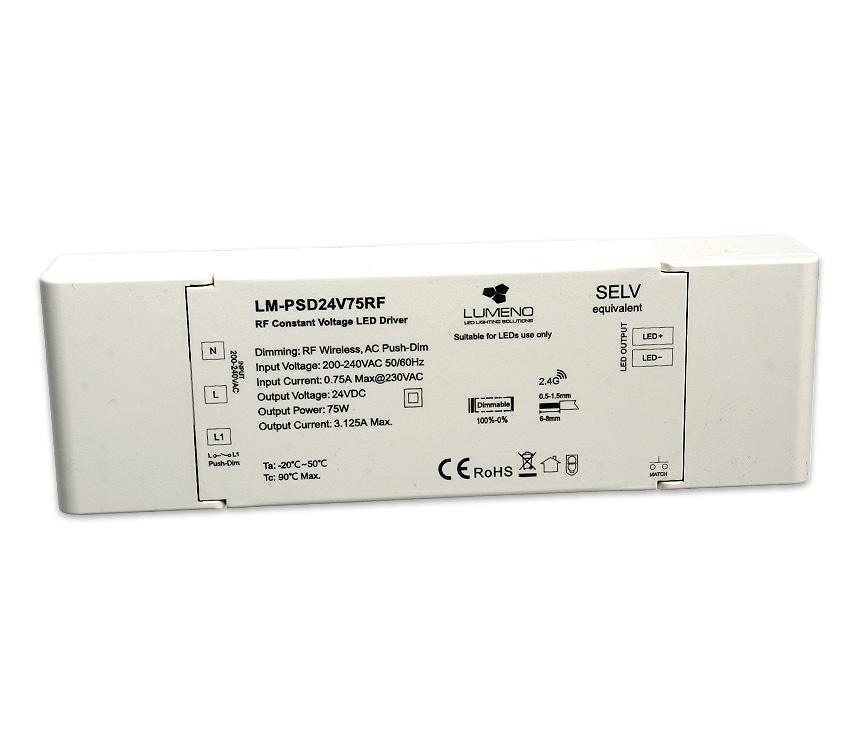

24V 75W Dimmable Power Supply, RF, Push-Dim, V Series
No vote
Dimming interface: RF Wireless, AC Push-Dim
Universal AC input / Full range
1 channel constant voltage output
Auto-transmitting and synchronization function
Synchronize on multiple number of LED drivers
Full protective plastic case
Suitable for indoor LED lighting application
RF Dimmable power supply for single colour 12V DC LED lights. With 230V push dimming interface. Warp V series.
Technical Specification
Model
LM-PSD24V75V1
Standby Power
1.6W
Inrush Current
Cold Start @27.5A
Wireless signal
2.4Gz
Control distance
30m
Output (Vo)
V+ / V-
Output Power (P)
3.125A
Ingress Protection
IP20
Dimming
RF using Warm V series controllers, Push to make interface
Size
179x56x30mm
Warranty Period
5 Years
Working Temperature
20-50°C
Protection
Over-heat / Over-load / Short circuit protection / recover automatically
Certification
CE,EMC,Rohs
Downloads
