ctv403-1
LM-CTV403RGBW

RGBW Remote control & receiver Set, 4x3A

No vote

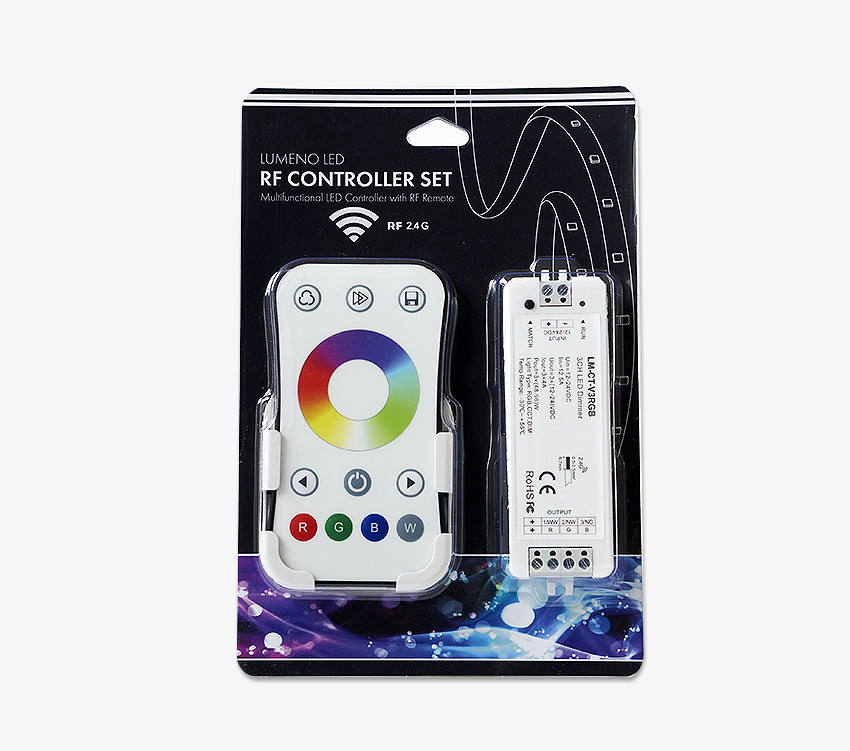

  • RGB/RGBW Remote Control+receiver set
  • Complete with V3 (RGB) receiver
  • Remote can be matched with additional V3/V4 controllers
  • 2.4Ghz Frequency, 30m Range
  • 254 Colour shades, modes and scene setting
  • Blister-pack
Low voltage RGB control set. Set can relate brightness of LED strips as well as select any colour required. Set comes complete with 3x4A receiver (x3: 12V@48W-24V@96W) and hand held remote with wall bracket. Set compatible with all CT-V3/V4 receivers.

Technical Specification

ModelLM-CTV403RGBW
Input Voltage (Pri) 12V-36V DC
Wireless signal RF 2.4Gz
Control distance 30m ( barier free)
Output (Vo) RGB+
Output Power (P) 144-288 Watt
Current Output (Io) 3Ch, 4A/Ch
Ingress Protection IP20
Dimming PWM dimming
Warranty Period 2 Years
Working Temperature -30°C ~+55°C
Certification CE,EMC,LVD,RED
