DATASHEET - RF Control module

www.lumeno.ie

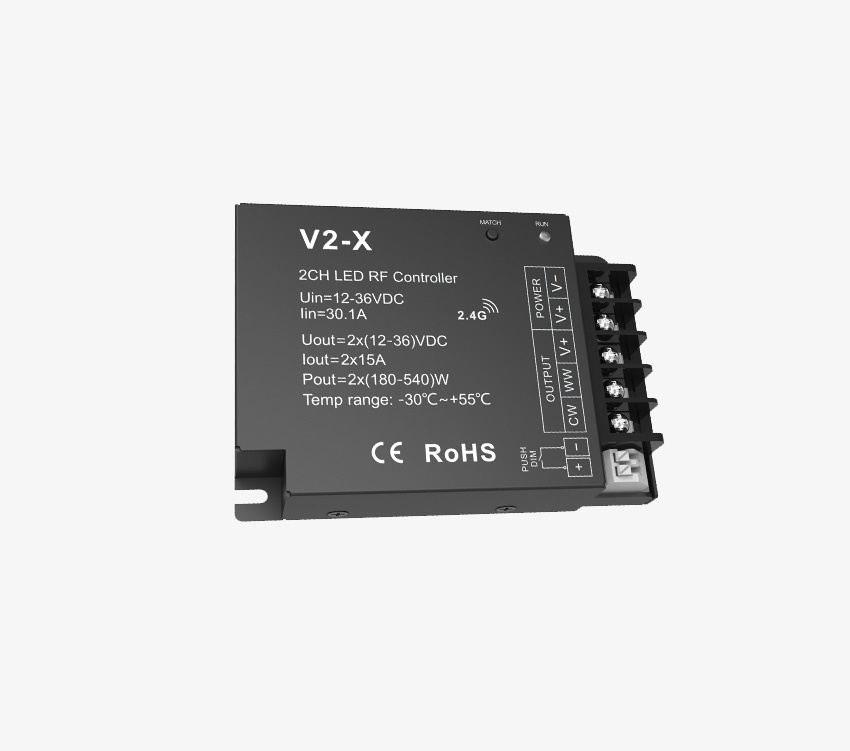

ct-v2x-1
LM-CT-V2-X

RF Receiver, CCT, 2CH*15A 12-36VDC, CV, RF

No vote
  • RF CCT and dimming controller/receiver
  • High capacity: 2x 15A output
  • Signal relay/repeat technology + 30m range
  • 2.4Ghz Frequency, 15m Range
High capacity cct chaning/dimming receiver module. With 2 outputs each @15A (12V@180W, 24V@360W). Can either operate as a single colour dimmer or cct selecting module.

Technical Specification

ModelLM-CT-V2-X
Input Voltage (Pri) 12V-36V DC
Wireless signal RF 2.4Gz
Control distance 15m ( barier free)
Output (Vo) CW / WW / +
Output Power (P) 360-720 Watt
Current Output (Io) 2Ch, 15A/Ch
Ingress Protection IP20
Dimming PWM dimming
Size 107x75x24.5mm
Warranty Period 2 Years
Working Temperature -30°C ~+55°C
AC Current (Ip) 30.1A
Protection Reverse polarity Over-heat Short circuit
Certification CE,EMC,LVD,RED
