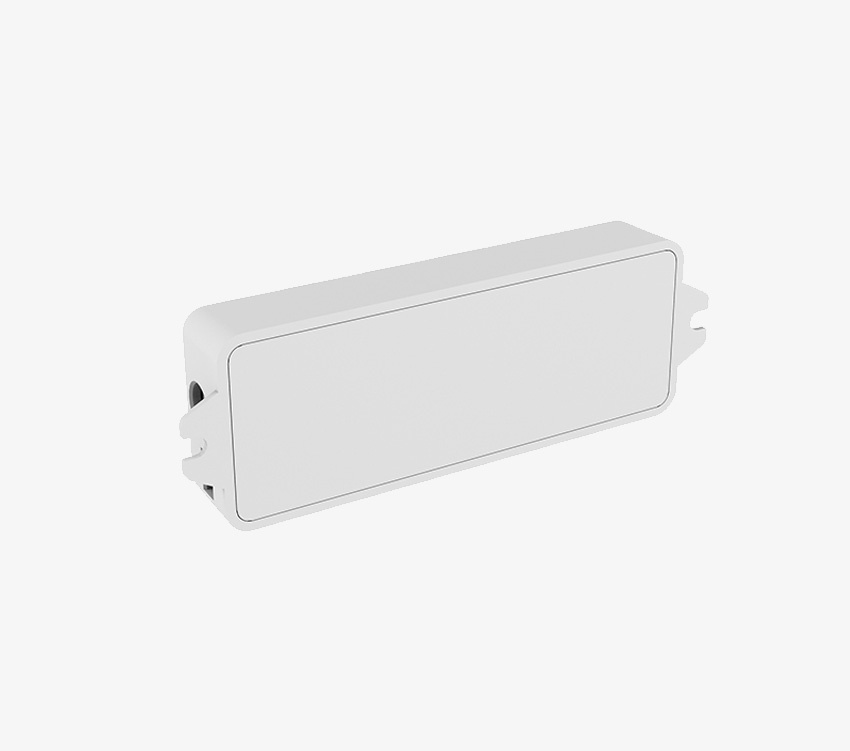

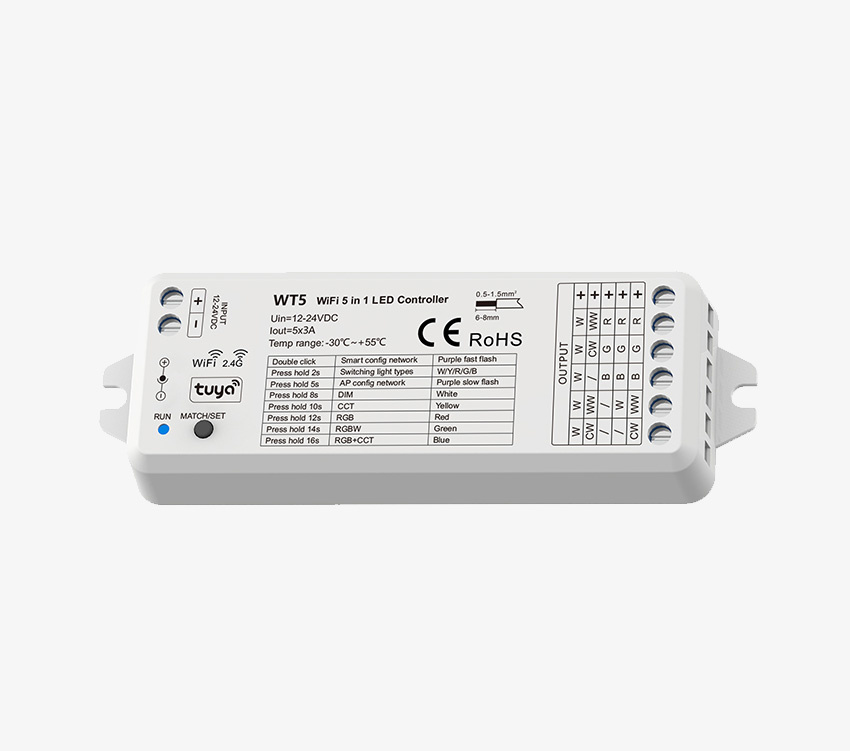

Multifunctional LED Controller/Relay, RF/WIFI/IOT,

No vote

5 in 1 Mobile App dimming / control module. Universal app - TUYA control for single colour, rgb, rgbw, rgb+cct LED strips. Requires

Technical Specification
Model	LM-CT-WT5-IOT
Input Voltage (Pri)	12V-36V DC
Wireless signal	TUYA Wifi & RF2.4Ghz input/output
Control distance	30m ( barier free)
Output (Vo)	RGB+CCT
Output Power (P)	180-360 Watt
Current Output (Io)	5CH,3A/CH
Ingress Protection	IP20
Dimming	PWM dimming
Size	114x38x20mm
Warranty Period	2 Years
Working Temperature	-30°C ~+55°C
AC Current (Ip)	15.5A
Protection	Reverse polarity Over-heat Short circuit
Certification	CE,EMC,LVD,RED
