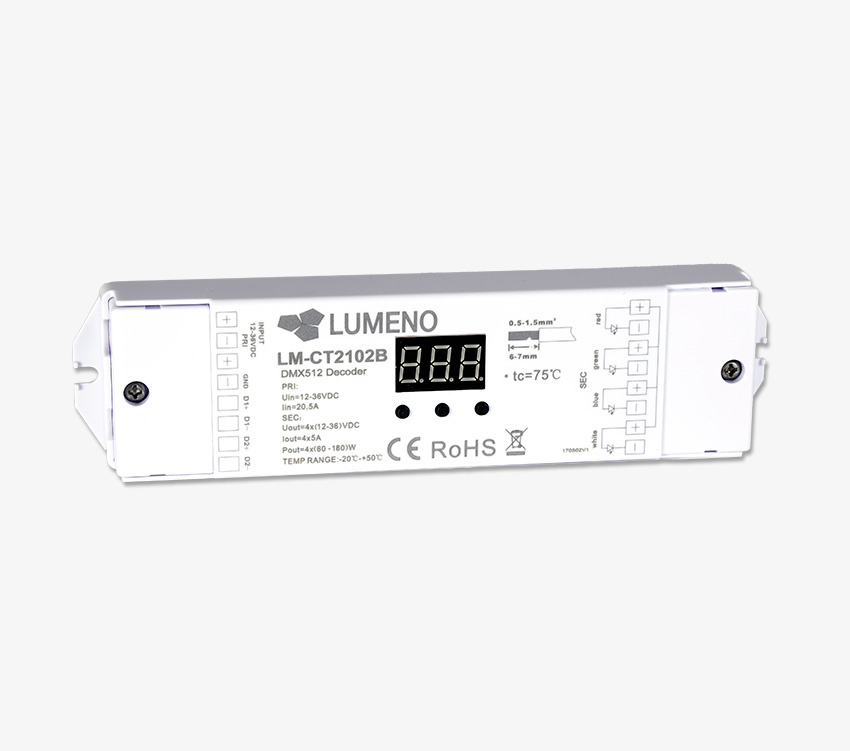

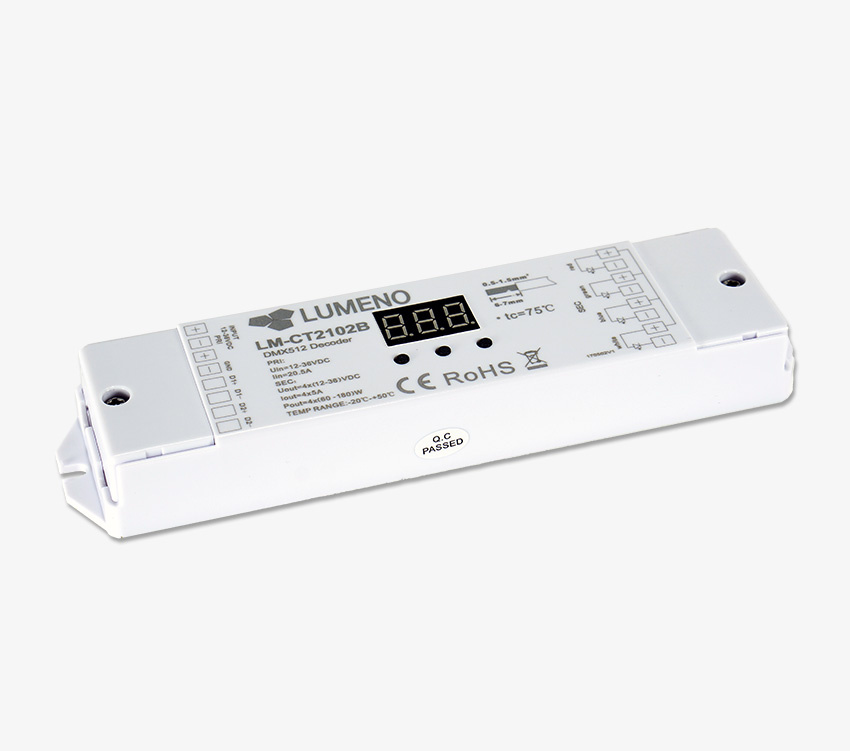

DMX RGBW Decoder, 4Ch, 4x 6A, 12-36V DC

No vote

Standard DMX512 compliant control interface
Three-channel/ four-channel Decoding output selectable

DMX Decoder for LED strip lights.Can be set to work as a 3ch or 4ch decoder @ 6A each (x4 12V@72W, 24V@144W). Digital display for address and mode setting. Max 30 devices can work in one DMX universe.

Technical Specification
Model	LM-CT2102B-DMX
Input Voltage (Pri)	12V-36V DC
Output (Vo)	RGBW+
Current Output (Io)	4Ch, 6A/Ch
Ingress Protection	IP20
Warranty Period	3 Years
Working Temperature	-30°C ~+55°C
Certification	CE ROHS Certified
