DATASHEET - Wall plate controller

www.lumeno.ie
ct-t13-1
ct-t13-1ct-t13-2
LM-CT-T13-RGB

Touch wallplate, RGB, 4 Zone, 230V,DMX,RF(V3/V3-L)

No vote
  • RF RGB Wall Controller
  • Dual Mode DMX Master and RF Remote
  • Compatible with V3 and V3-L receivers
  • 2.4Ghz Frequency, 10m Range

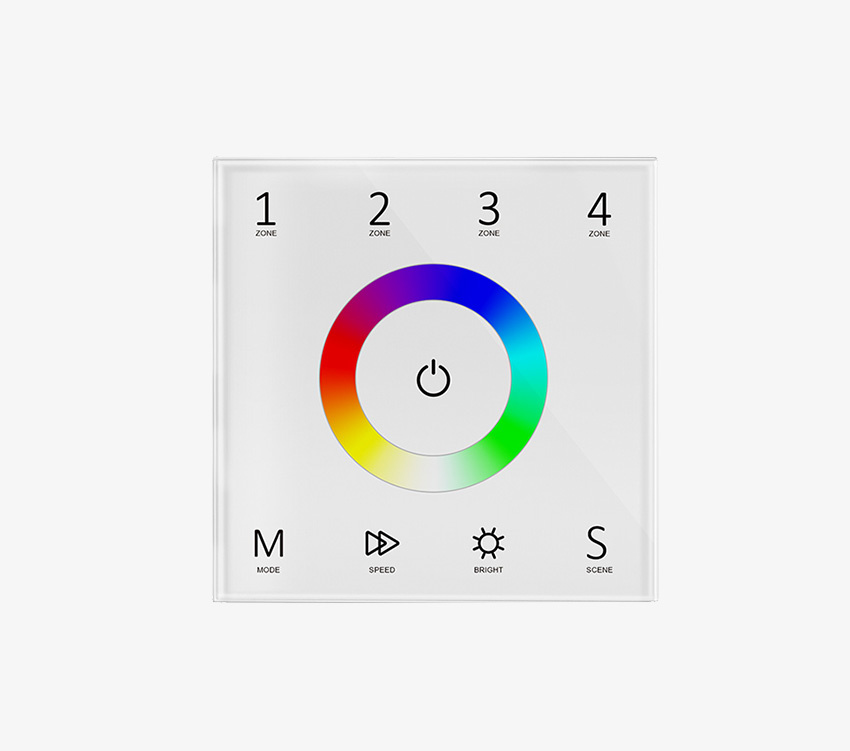

Touch panel wall plate remote control for RGB colour changing LED strips and DMX Lights (Pyxi/HEXI). Touch Dimming Remote Control with wireless signal and DMX interface. Can work both with CT-V3/V3-L dimming modules and DMX decoders. Can also receive signal from a hand held remote (RT4/RT9).

Technical Specification

ModelLM-CT-T13-RGB
Standby Power <2µA
Input Voltage (Pri) 220V - 240V AC
Wireless signal RF 2.4Gz
Control distance 10m(Barrier-free space

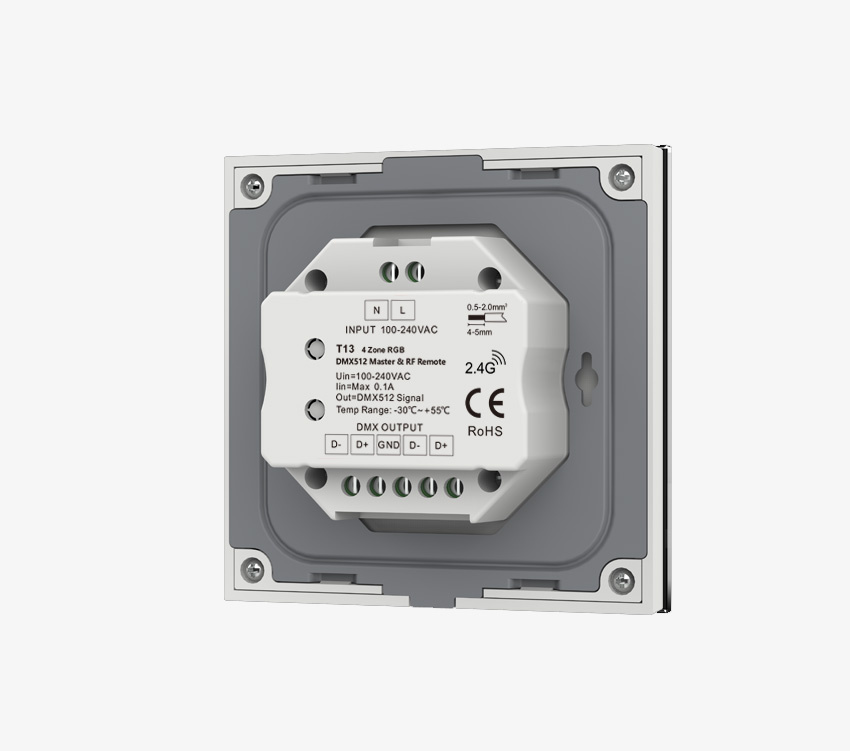

Output (Vo) DMX512 D+ / D- / G
Ingress Protection IP20
Size 86x86x48mm
Warranty Period 2 Years
Working Temperature -30°C ~+55°C
AC Current (Ip) 0.1A
Protection EN 62368-1:2020+A11:2020
Certification CE,EMC,LVD,RED
