DATASHEET - 60W CCT LED Wall Light, SON/WW/NW, VANTAGE

www.lumeno.ie
vantage-1
vantage-1vantage-2vantage-3vantage40-4
LM-MWV60CCT

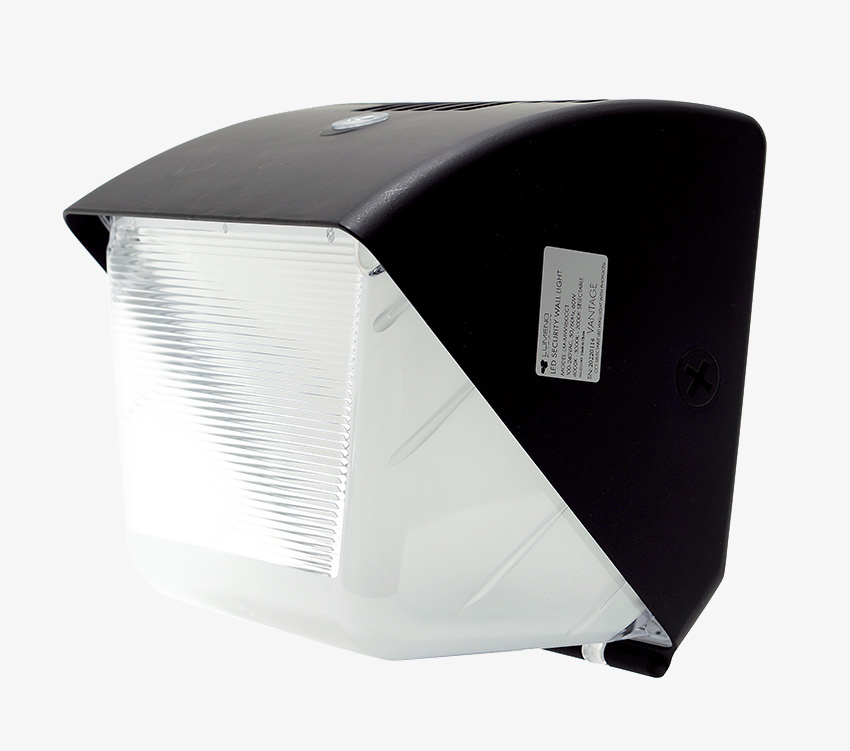

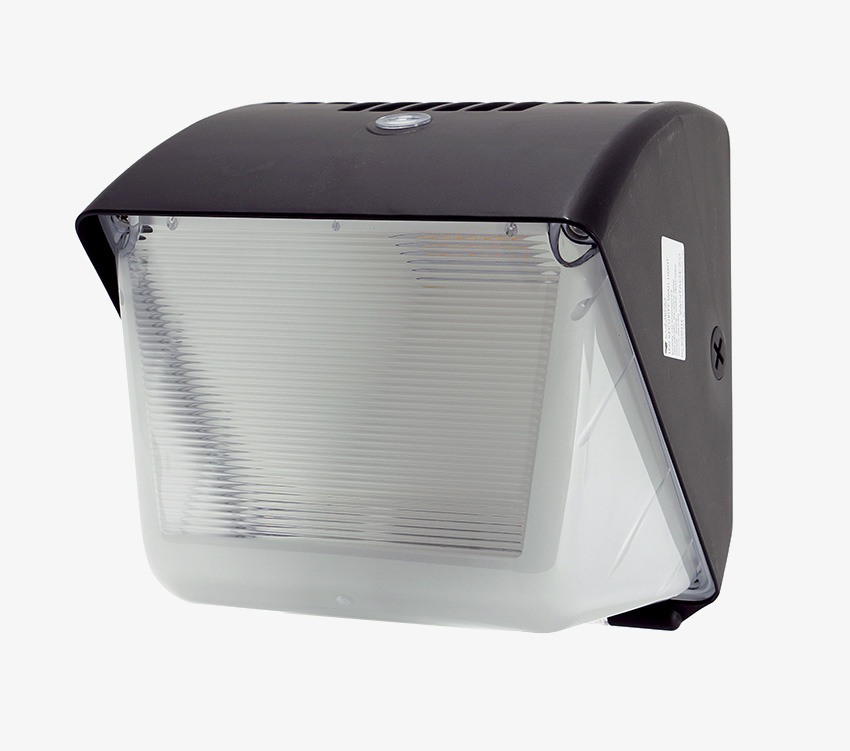

Vantage 60 CCT External Wall Pack



D

7468LM
  • EPISTAR 2835 Matrix as light source
  • Compact modern design,
  • Integrated, detachable Photocell sensor
  • CCT Selectable light output 2000K - 3000K- 4000K
  • IP65 Waterproof complete with Rubber grommets
  • Isolated driver - no power leak via sensor
  • Beam Angle of over 100°

VANTAGE LED Wall Light series is a modern design of an external wall-pack light. Using high quality SMD2835 chips providing 3 distinct colour temperatures all in one luminaire.

Technical Specifications

General
Model
LM-MWV60CCT
Product type
Wall Light
Warranty Period
3 Years
Product finish
Carbon Gray
Electrical
Input Voltage (Pri)
110V - 240V AC
Nominal Power
60 Watt
Power Factor
0.98
Lighting
Luminare Class
MDLS
Light Source
LED
Luminous Flux (LM)
7468LM
Luminaire efficacy
146
Light Angle (°)
90°
Mechanical
Ingress Protection
IP65
Weight
2500g
